How to make a 3d object with modelling??

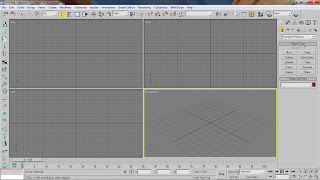

1. Open your 3dmax software.

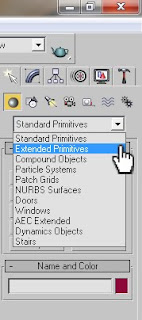

2. Select geometry and choose Extended Primitives.



3. and then click Capsule, like in the picture.



4. create an object like that from the left viewport.



5. after that, drag it to the left.



6. than you are confused, you can copy the radius and the height value like at the picture.

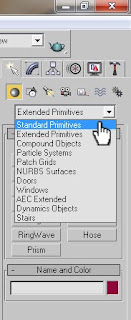

7. okay, select geometry and choose Standard Primitives.



8. Click to Cylinder.


9. We create a cylinder object like at the picture, to make wheel of the Capsule.


10. than you are confused, you can copy the radius and the height value like at the picture.


11. I want to make our job easy, by copy the object. How to copy the object?? Click to the object, and press shift button and drag the object in the direction you want. But at the picture, I drag it to the left, to make another wheel.


12. And now let's we make a wheel lock. The way, select geometry again and click to the Cylinder.



13. You should create the Cylinder Object at the middle of wheel, like at the picture.



14.than you are confused, you can copy the radius and the height value like at the picture.



15. Set position of the Cylinder object like at the picture.



16. Select Group and click Group.



17. you can change the name object you want to save and then Click ok.



18. Let's we Copy the front Wheel by press shift button and drag it to the right position. That's to make a rear wheel. and click ok.





I will attach the source file to learn.
Click Here to download
